Steel Gas Meter
Lub diaphragm steel gas meter yog siv lub ntsiab lus sib txawv ntawm qhov nkag thiab qhov hluav taws xob los txhawb cov diaphragms hauv lub thawv diaphragm los ua qhov txav mus los. Thaum cov roj ntws nkag mus rau hauv lub ' meter ', nws ua ntej tag nrho ntawm qhov chaw sab hauv ntawm lub 'meter' vaj tse, los ntawm ...
Muaj nuj nqi
Lub diaphragm steel gas meter yog siv lub ntsiab lus sib txawv ntawm qhov nkag thiab qhov hluav taws xob los txhawb cov diaphragms hauv lub thawv diaphragm los ua qhov txav mus los. Thaum cov roj ntws nkag mus rau hauv lub 'meter', nws ua ntej tag nrho ntawm qhov chaw sab hauv ntawm lub 'meter' vaj tsev nyob, los ntawm lub qhov ncauj valve lub qhov ncauj vim qhov sib txawv ntawm qhov sib txawv, cov roj yuav hloov mus rau hauv cov thawv sib txawv thiab paub cov thawv diaphragm hloov pauv. them thiab tso tawm. Lub zog ntawm lub teb valve yog pauv mus rau lub iav tsav los ntawm kev sib kis mechanism thiab sib sau ua ke.Cov roj ntim los ntawm lub 'meter' mus rau qhov ntsuas ntsuas los ntawm qhov sib piv calibration zog kom paub txog qhov ntsuas ntawm cov roj ntsuas steel.
Independent ntsuas chav tsev qauv tsim nyob rau hauv, thiab sab nraud cov ntaub ntawv yog nias los ntawm high-zoo tshuaj tsuag-xim hlau, nws muaj qhov tseeb thiab kev ntseeg siab. Tsim thiab ua kom zoo, sim nruj me ntsis rau GS serials gas meter uas haum rau NG, LPG, Lub Nroog Gas, marsh gas ntsuas.
Nta:
- Sab nraum cov ntaub ntawv ua los ntawm cov hlau zoo.
- Nto txau-xim tiv thaiv los ntawm corrosion.
- Case kaw siv stainless hlau los tiv thaiv to
- Diaphragm ua los ntawm kev ua ntej gluing thiab vulcanization txheej txheem
- Siv cov khoom zoo bakelite notary valve
- Cov ntaub ntawv sab sauv thiab cov ntaub ntawv qis tau kho nrog cov kua nplaum rau kev tiv thaiv to.
- Kev ua haujlwm dav dav: GS1.6, GS2.5, GS4
- High precision thiab lub sij hawm ntev thiab kev ntseeg tau
- Tsawg suab nrov
- AMR yeem
Technical yam ntxwv:
Yam khoom | chav tsev | GS 1.6 | GS2.5 TSI | GS 4 | |
Nominal flow-rate | m3/h | 1.6 | 2.5 | 4 | |
Max flow-rate (Qmax) | m3/h | 2.5 | 4 | 6 | |
Tus nqi qis qis (Qmin) | m3/h | 0.016 | 0.025 | 0.040 | |
Plhaub | ST 18 | ||||
Center nrug | mm | 130(110) | |||
Tag nrho lub siab nqus | Pa | <> | |||
siab ntau | kPa ua | 0.5~50 | |||
Cyclic ntim | ua dm3 | 1.2 | |||

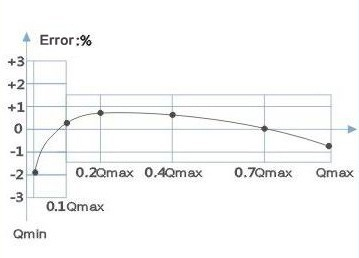

yuam kev | Qmin Tsawg dua lossis sib npaug Q<> | feem pua | ±3 | ||
| 0.1Qmax Tsawg dua lossis sib npaug rau Q Tsawg dua lossis sib npaug rau Qmax | feem pua | ±1.5 | |||
Min .cov ntaub ntawv nyeem | ua dm3 | 0.2 | |||
Max. sau ntawv nyeem | m3 | 99999.999 | |||
Kev ua haujlwm ambient kub | degree | -10- ntxiv 40 | |||
Cia kub | degree | -20- ntxiv 50 | |||
Kev sib txuas xov | M30 × 2; NPT3/4 (Tham nrog peb rau lwm yam kev sib txuas) | ||||
Qhov Loj:
Qauv | H | W | D | E | A | LUB SIJ HAWM |
GS 1.6/2.5/4 | 22 4mm | 195 hli | 67mm ib | 164mm ib | 130 (110) hli | 1.9Kg ib |
Ordering information:
- Kev ntsuas ntau (GS1.6, GS2.5, GS4)
- Ua haujlwm siab ntau yam
- Kev sib txuas loj thiab kev taw qhia
- Hub rau nruab nrab
- Meter connector (hlau los yog tooj liab)
- Tham nrog peb rau lwm yam kev xav tau
Accessories:
- Meter connector (M30 × 2, Los ntawm txoj kev)
- Meter connector (M30 × 2, lub kaum sab xis)
